LM Shaft - GSF Series
First slide
Model No. Dia g6 (µm) h5 (µm) h6 (µm) 500 1000 2000 3000 4000 5000 6000 Download
GSF03 3 -2 ~ -8 0 ~ -4 0 ~ -6
GSF04 4 -4 ~ -12 0 ~ -5 0 ~ -8
GSF05 5 -4 ~ -12 0 ~ -5 0 ~ -8
GSF06 6 -4 ~ -12 0 ~ -5 0 ~ -8
GSF08 8 -5 ~ -14 0 ~ -6 0 ~ -9
GSF10 10 -5 ~ -14 0 ~ -6 0 ~ -9
GSF12 12 -6 ~ -17 0 ~ -8 0 ~ -11
GSF13 13 -6 ~ -17 0 ~ -8 0 ~ -11
GSF16 16 -6 ~ -17 0 ~ -8 0 ~ -11
GSF20 20 -7 ~ -20 0 ~ -9 0 ~ -13
GSF22 22 -7 ~ -20 0 ~ -9 0 ~ -13
GSF25 25 -7 ~ -20 0 ~ -9 0 ~ -13
GSF30 30 -7 ~ -20 0 ~ -9 0 ~ -13
GSF32 32 -7 ~ -20 0 ~ -9 0 ~ -13
GSF35 35 -9 ~ -25 0 ~ -11 0 ~ -16
GSF40 40 -9 ~ -25 0 ~ -11 0 ~ -16
GSF45 45 -9 ~ -25 0 ~ -11 0 ~ -16
GSF50 50 -9 ~ -25 0 ~ -11 0 ~ -16
GSF55 55 -9 ~ -25 0 ~ -11 0 ~ -16
GSF56 56 -9 ~ -25 0 ~ -11 0 ~ -16
GSF60 60 -10 ~ -29 0 ~ -13 0 ~ -19
GSF63 63 -10 ~ -29 0 ~ -13 0 ~ -19
GSF70 70 -10 ~ -29 0 ~ -13 0 ~ -19
GSF80 80 -10 ~ -29 0 ~ -13 0 ~ -19
GSF90 90 -12 ~ -34 0 ~ -15 0 ~ -22
GSF100 80 -12 ~ -34 0 ~ -15 0 ~ -22
GSF120 120 -12 ~ -34 0 ~ -15 0 ~ -22
GSF150 150 -14 ~ -49 0 ~ -18 0 ~ -25
GSF180 180 -14 ~ -39 0 ~ -18 0 ~ -25
GSF200 200 -15 ~ -44 0 ~ -20 0 ~ -29

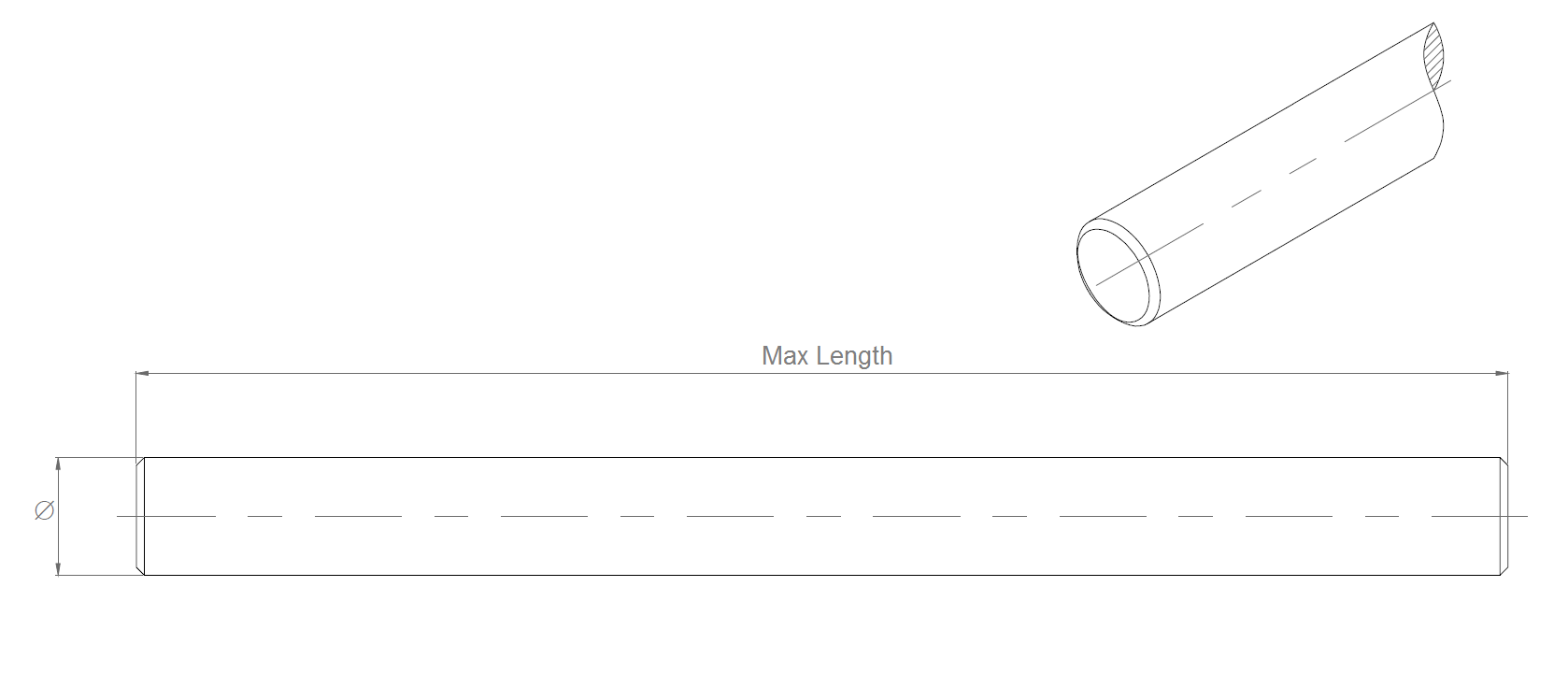

Max. Length : 6000mm
Max. Diameter : 300mm
