Ball Screw Support Unit - GFF Series
First slide

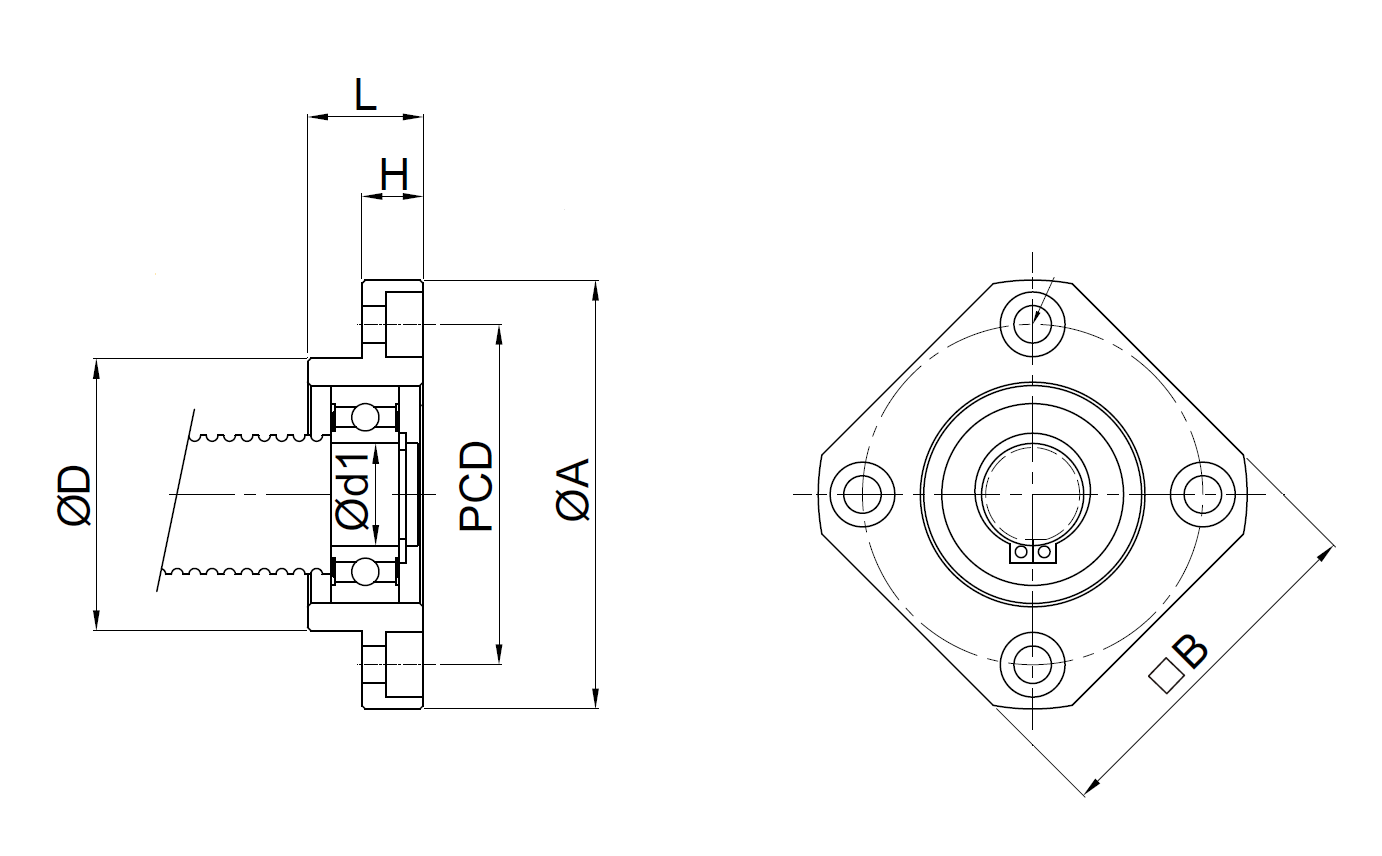

Model No. d1 L H D-g6 A PCD B Download
GFF6/8 6 10 6 22 36 28 28
GFF10 8 12 7 28 43 35 35
GFF12 10 15 7 34 52 42 42
GFF15 15 17 9 40 63 50 52
GFF17 17 20 11 50 77 62 61
GFF20 20 20 11 57 85 70 68
GFF25 25 24 14 63 98 80 79
GFF30 30 27 18 75 117 95 93
