LM Bearing - GLM - GA / AJ / OP Series
First slide

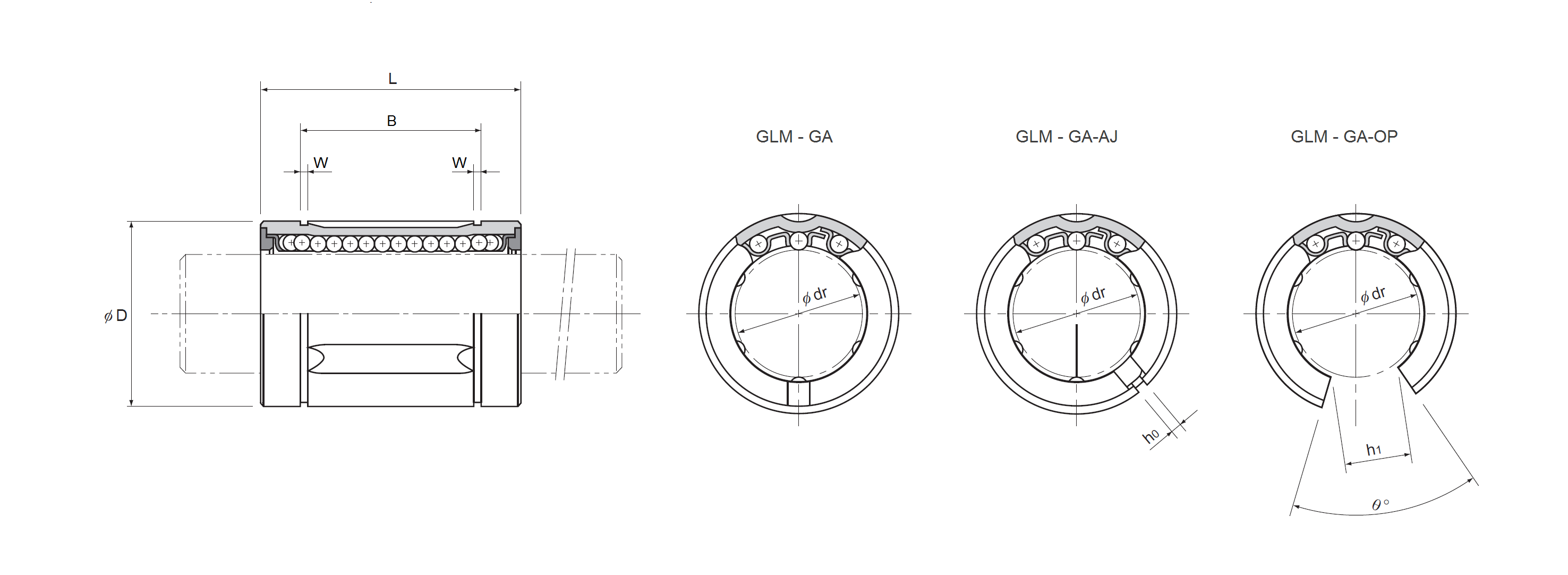

Model No. Model No. Model No. Shaft Dia. dr D L B W h0 h1 ⊘○ Download
GLM6GA - - 6 12 19 13.5 1.1 - - -
GLM8SGA - - 8 15 17 11.5 1.1 - - -
GLM8GA - - 8 15 24 17.5 1.1 - - -
GLM10GA - - 10 19 29 22 1.3 - - -
GLM12GA GLM12GAAJ GLM12GAOP 12 21 30 23 1.3 1.5 8 80○
GLM13GA GLM13GAAJ GLM13GAOP 13 23 32 23 1.3 1.5 9 80○
GLM16GA GLM16GAAJ GLM16GAOP 16 28 37 26.5 1.6 1.5 11 80○
GLM20GA GLM20GAAJ GLM20GAOP 20 32 42 30.5 1.6 1.5 11 80○
GLM25GA GLM25GAAJ GLM25GAOP 25 40 59 41 1.85 2 12 50○
GLM30GA GLM30GAAJ GLM30GAOP 30 45 64 44.5 1.85 2.5 15 50○
GLM35GA GLM35GAAJ GLM35GAOP 35 52 70 49.5 2.1 2.5 17 50○
GLM40GA GLM40GAAJ GLM40GAOP 40 60 80 60.5 2.1 3 20 50○
GLM50GA GLM50GAAJ GLM50GAOP 50 80 100 74 2.6 3 25 50○
GLM60GA GLM60GAAJ GLM60GAOP 60 90 110 85 3.15 3 30 50○
GLM80GA GLM80GAAJ GLM80GAOP 80 120 140 105.5 4.15 3 40 50○
GLM100GA GLM100GAAJ GLM100GAOP 100 150 175 105.5 4.15 3 50 50○
GLM120GA GLM120GAAJ GLM120GAOP 120 180 200 158.6 4.15 3 85 80○
GLM150GA GLM150GAAJ GLM150GAOP 150 210 240 170.6 5.15 3 105 80○
GLM180GA GLM180GAAJ GLM180GAOP 180 260 280 210.6 5.15 3 125 80○
GLM200GA GLM200GAAJ GLM200GAOP 200 280 320 250.6 5.15 3 140 80○
