LM Bearing - GLM - AJ / OP Series
First slide

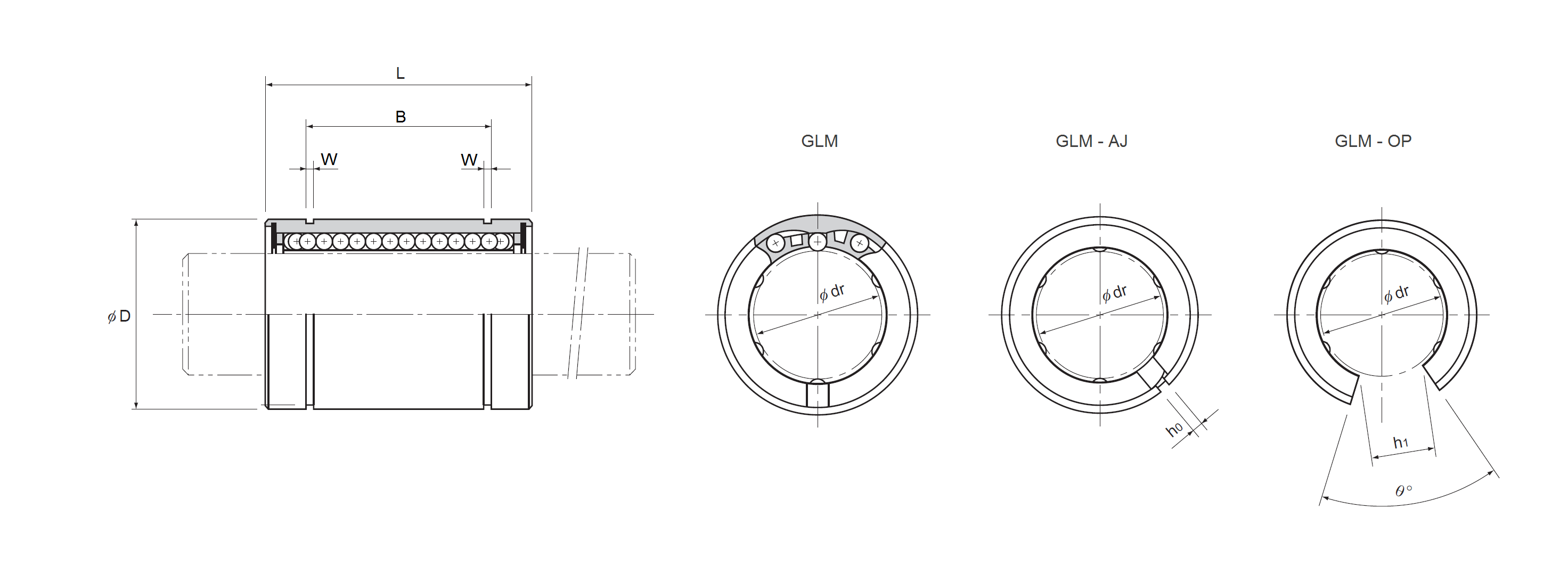

Model No. Model No. Model No. Shaft Dia. dr D L B W h0 h1 ⊘○ Download
GLM3 - - 3 7 10 - - - - -
GLM4 - - 4 8 12 - - - - -
GLM5 - - 5 10 15 10.2 1.1 - - -
GLM6 - - 6 12 19 13.5 1.1 - - -
GLM8S - - 8 15 17 11.5 1.1 - - -
GLM8 - - 8 15 24 17.5 1.1 - - -
GLM10 GLM10AJ GLM10OP 10 19 29 22 1.3 1 6.8 80○
GLM12 GLM12AJ GLM12OP 12 21 30 23 1.3 1.5 8 80○
GLM13 GLM13AJ GLM13OP 13 23 32 23 1.3 1.5 9 80○
GLM16 GLM16AJ GLM16OP 16 28 37 26.5 1.6 1.5 11 80○
GLM20 GLM20AJ GLM20OP 20 32 42 30.5 1.6 1.5 11 60○
GLM25 GLM25AJ GLM25OP 25 40 59 41 1.85 2 12 50○
GLM30 GLM30AJ GLM30OP 30 45 64 44.5 1.85 2.5 15 50○
GLM35 GLM35AJ GLM35OP 35 52 70 49.5 2.1 2.5 17 50○
GLM40 GLM40AJ GLM40OP 40 60 80 60.5 2.1 3 20 50○
GLM50 GLM50AJ GLM50OP 50 80 100 74 2.6 3 25 50○
GLM60 GLM60AJ GLM60OP 60 90 110 85 3.15 3 30 50○
GLM70 GLM70AJ GLM70OP 70 100 130 100 3.15 3 30 50○
GLM80 GLM80AJ GLM80OP 80 120 140 105.5 4.15 3 40 50○
GLM100 GLM100AJ GLM100OP 100 150 175 125.5 4.15 3 50 50○
GLM120 GLM120AJ GLM120OP 120 180 200 158.6 4.15 3 85 80○
GLM150 GLM150AJ GLM150OP 150 210 240 170.6 5.15 3 105 80○
GLM180GA GLM180GAAJ GLM180GAOP 180 260 280 210.6 5.15 3 125 80○
GLM200GA GLM200GAAJ GLM200GAOP 200 280 320 250.6 5.15 3 140 80○
