LM Bearing - GLMB - AJ / OP Series
First slide

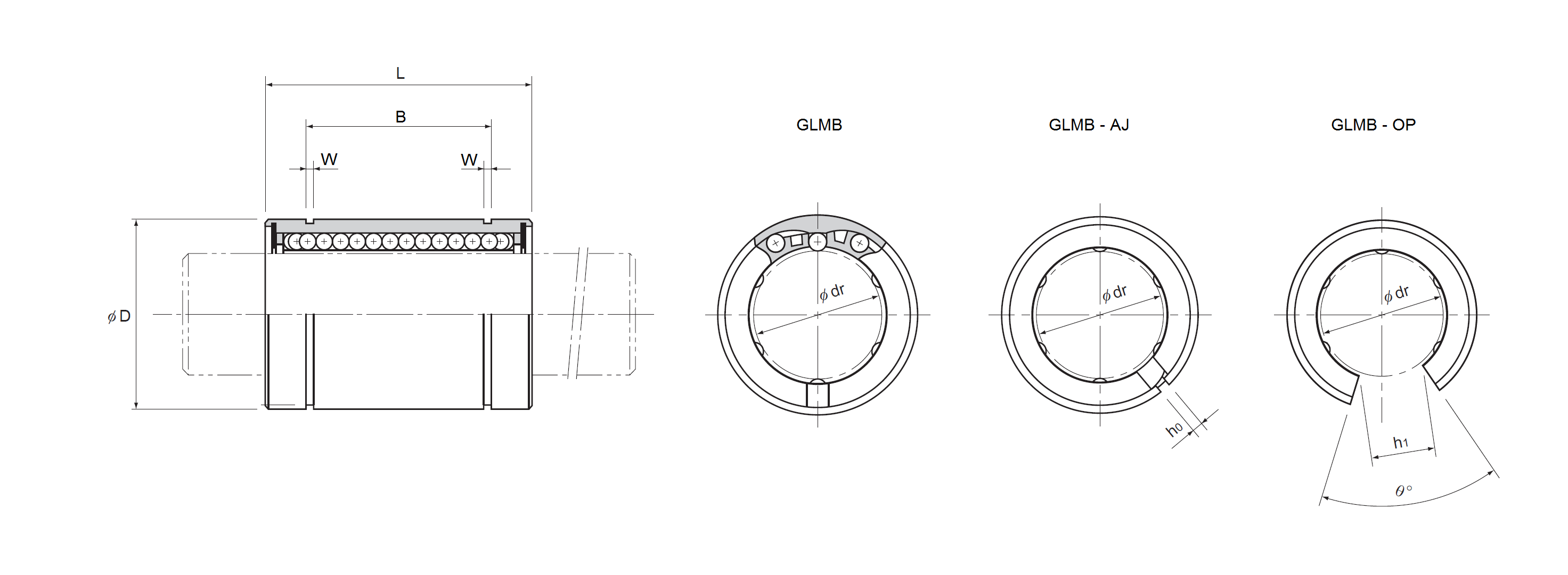

Model No. Model No. Model No. Shaft Dia. dr D L B W h0 h1 ⊘○ Download
GLMB4 - - 6.35 12.7 19.05 12.98 0.992 1 - -
GLMB6 - - 9.525 15.875 22.225 16.15 0.992 1 - -
GLMB8 GLMB8AJ GLMB8OP 12.7 22.225 31.757 24.46 1.168 1.5 7.9375 80○
GLMB10 GLMB10AJ GLMB10OP 15.875 28.575 38.1 28.04 1.422 1.5 9.525 80○
GLMB12 GLMB12AJ GLMB12OP 19.05 31.757 41.275 29.61 1.422 1.5 11.1125 60○
GLMB16 GLMB16AJ GLMB16OP 25.4 39.688 57.15 44.57 1.727 1.5 14.2875 50○
GLM20 GLMB20AJ GLMB20OP 31.75 50.8 66.675 50.92 1.727 2.5 15.875 50○
GLM24 GLMB24AJ GLMB24OP 38.1 60.325 76.2 61.26 2.184 3 19.05 50○
GLM32 GLMB32AJ GLMB32OP 50.8 76.2 101.6 81.07 2.616 3 25.40 50○
