LM Bearing - GLMBF Series
First slide

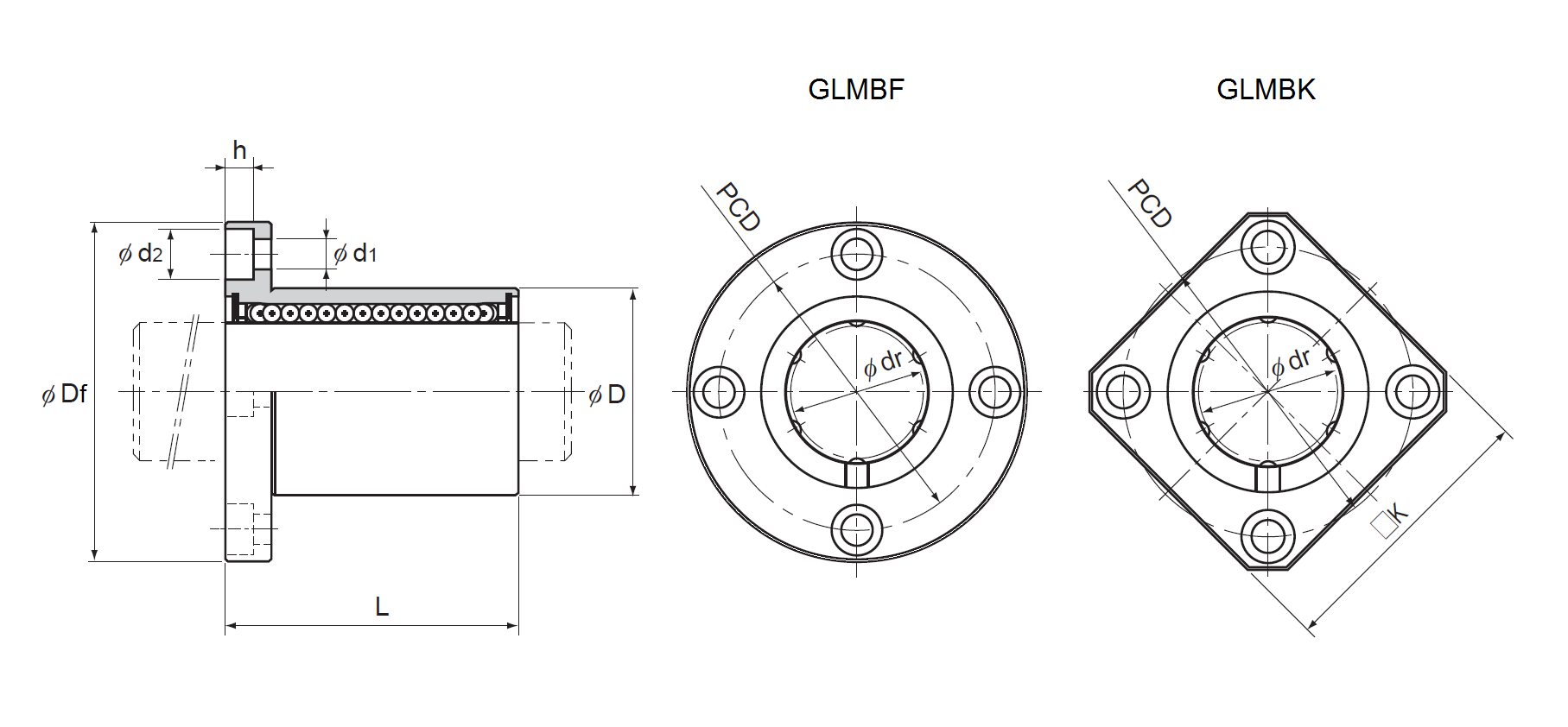

Model No. Model No. Shaft Dia. dr D L Df K Download
GLMBF4 GLMBK4 6.38 12.7 19.05 31.75 25.4
GLMBF6 GLMBK6 9.525 15.875 22.225 38.1 31.75
GLMBF8 GLMBK8 12.7 22.225 31.75 44.45 34.925
GLMBF10 GLMBK10 15.875 28.575 38.1 50.8 38.1
GLMBF12 GLMBK12 19.05 31.757 41.275 55.563 42.863
GLMBF16 GLMBK16 25.4 39.688 57.15 63.5 50.8
GLMBF20 GLMBK20 31.75 50.8 66.675 79.375 63.5
GLMBF24 GLMBK24 38.1 60.325 762 95.25 76.2
GLMBF32 GLMBK32 50.8 76.2 101.6 111.125 88.9
GLMBF40 GLMBK40 63.5 95.25 127 136.525 111.125
GLMBF48 GLMBK48 76.2 114.3 152.4 155.575 127
GLMBF64 GLMBK64 101.6 152.4 203.2 203.2 171.45
