LM Bearing - GLMBFC / GLMBKC - Series
First slide

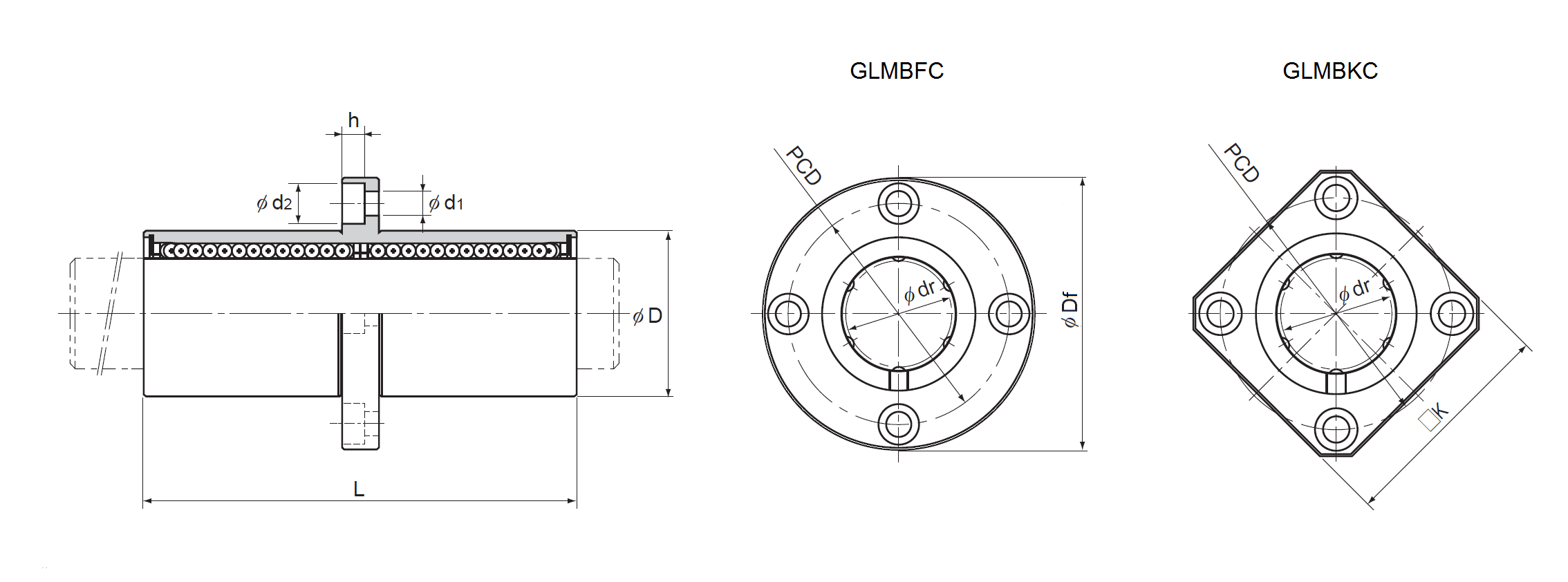

Model No. Model No. Shaft Dia. dr D L Df K Download
GLMBFC4UU GLMBKC4UU 6.38 12.7 34.925 31.75 25.4
GLMBFC6UU GLMBKC6UU 9.525 15.875 40.481 38.1 31.75
GLMBFC8UU GLMBKC8UU 12.7 22.225 60.325 44.45 34.925
GLMBFC10UU GLMBKC10UU 15.875 28.575 71.438 50.8 38.1
GLMBFC12UU GLMBKC12UU 19.05 31.757 78.581 55.563 42.863
GLMBFC16UU GLMBKC16UU 25.4 39.688 108.744 63.5 50.8
GLMBFC20UU GLMBKC20UU 31.75 50.8 127 79.375 63.5
GLMBFC24UU GLMBKC24UU 38.1 60.325 144.463 95.25 76.2
GLMBFC32UU GLMBKC32UU 50.8 76.2 196.85 111.125 88.9
