Ball Transfer Unit - GSBM Series
First slide

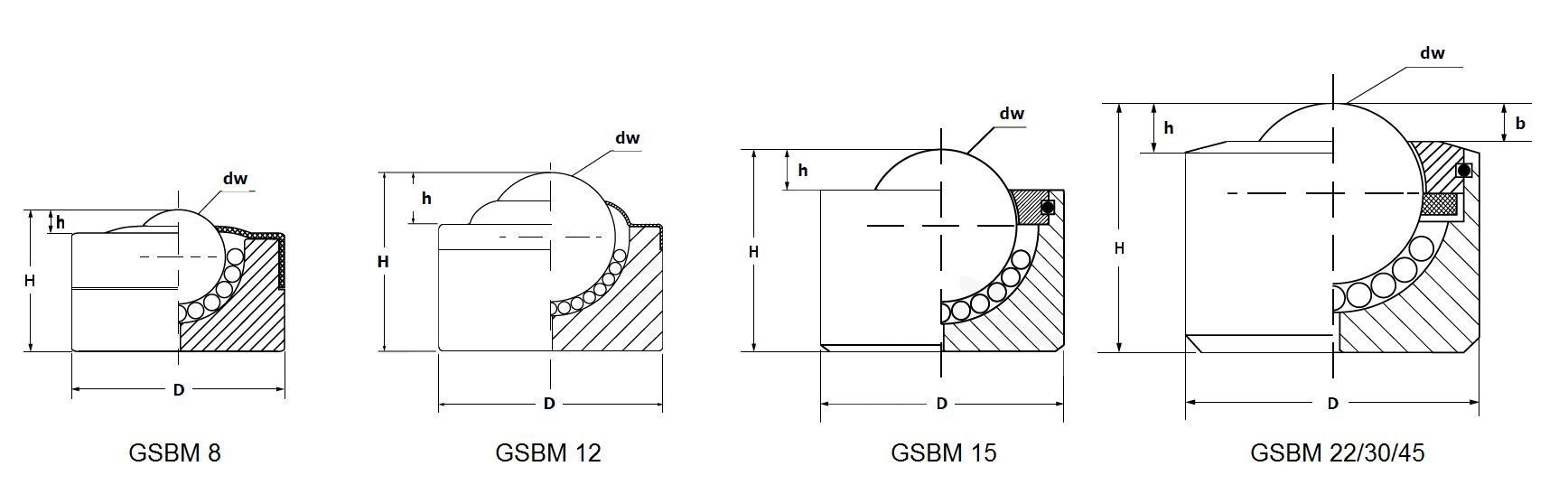

Model No Version dW D h H b Loading Capacity(Kg) ⤒ Loading Capacity(Kg) ⤓ W(Kg) Download


GSBM 8 A		 Body made of steel, balls made of AISI 52100 chrome steel

8

18 ± 0,08

2 ± 0,2

12

-

12

9

0,018

GSBM 12 A same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 20 15 0,035


GSBM 8 B		 Body made of zinc plated steel, balls made of AISI 52100 chrome steel

8

18 ± 0,08

2 ± 0,2

12

-

12

9

0,018

GSBM 12 B same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 20 15 0,035
GSBM 15 B same as above 15 24 ± 0,08 5 ± 0,2 20 - 50 35 0,050
GSBM 22 B same as above 22 36 ± 0,08 5,3 ± 0,2 30,5 4 180 125 0,170
GSBM 30 B same as above 30 45 ± 0,08 8 ± 0,3 36,8 8,5 350 250 0,330
GSBM 45 B same as above 45 62 ± 0,1 13 ± 0,3 53,5 10 600 420 0,945



GSBM 8 C		 Body made of zinc plated steel, balls made of AISI 420C stainless steel


8


18 ± 0,08


2 ± 0,2


12


-


10


7


0,018


GSBM 12 C same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 15 10 0,035
GSBM 15 C same as above 15 24 ± 0,08 5 ± 0,2 20 - 40 25 0,050
GSBM 22 C same as above 22 36 ± 0,08 5,3 ± 0,2 30,5 4 130 90 0,170
GSBM 30 C same as above 30 45 ± 0,08 8 ± 0,3 36,8 8,5 240 170 0,330
GSBM 45 C same as above 45 62 ± 0,1 13 ± 0,3 53,5 10 400 280 0,945



GSBM 8 SS		 Body made of stainless steel, balls made of AISI 420C stainless steel


8


18 ± 0,08


2 ± 0,2


12


-


10


9


0,018


GSBM 12 SS same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 15 10 0,035
GSBM 15 SS same as above 15 24 ± 0,08 5 ± 0,2 20 - 40 25 0,050




GSBM 8 BD		 Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel



8



18 ± 0,08



2 ± 0,2



12



-



3



-



0,016



GSBM 12 BD same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 5 - 0,030
GSBM 15 BD same as above 15 24 ± 0,08 5 ± 0,2 20 - 13 - 0,035
GSBM 22 BD same as above 22 36 ± 0,08 5,3 ± 0,2 30,5 4 20 - 0,140
GSBM 30 BD same as above 30 45 ± 0,08 8 ± 0,3 36,8 8,5 25 - 0,240
GSBM 45 BD same as above 45 62 ± 0,1 13 ± 0,3 53,5 10 30 - 0,650




GSBM 8 CD		 Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel



8



18 ± 0,08



2 ± 0,2



12



-



3



-



0,016



GSBM 12 CD same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 5 - 0,030
GSBM 15 CD same as above 15 24 ± 0,08 5 ± 0,2 20 - 13 - 0,035
GSBM 22 CD same as above 22 36 ± 0,08 5,3 ± 0,2 30,5 4 20 - 0,140
GSBM 30 CD same as above 30 45 ± 0,08 8 ± 0,3 36,8 8,5 25 - 0,240
GSBM 45 CD same as above 45 62 ± 0,1 13 ± 0,3 53,5 10 30 - 0,650




GSBM 8 SSCD		 Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel



8



18 ± 0,08



2 ± 0,2



12



-



3



-



0,016



GSBM 12 SSCD same as above 12 22 ± 0,08 5,5 ± 0,2 17,5 - 5 - 0,030
GSBM 15 SSCD same as above 15 24 ± 0,08 5 ± 0,2 20 - 13 - 0,035
