Ball Transfer Unit - GSPS Series

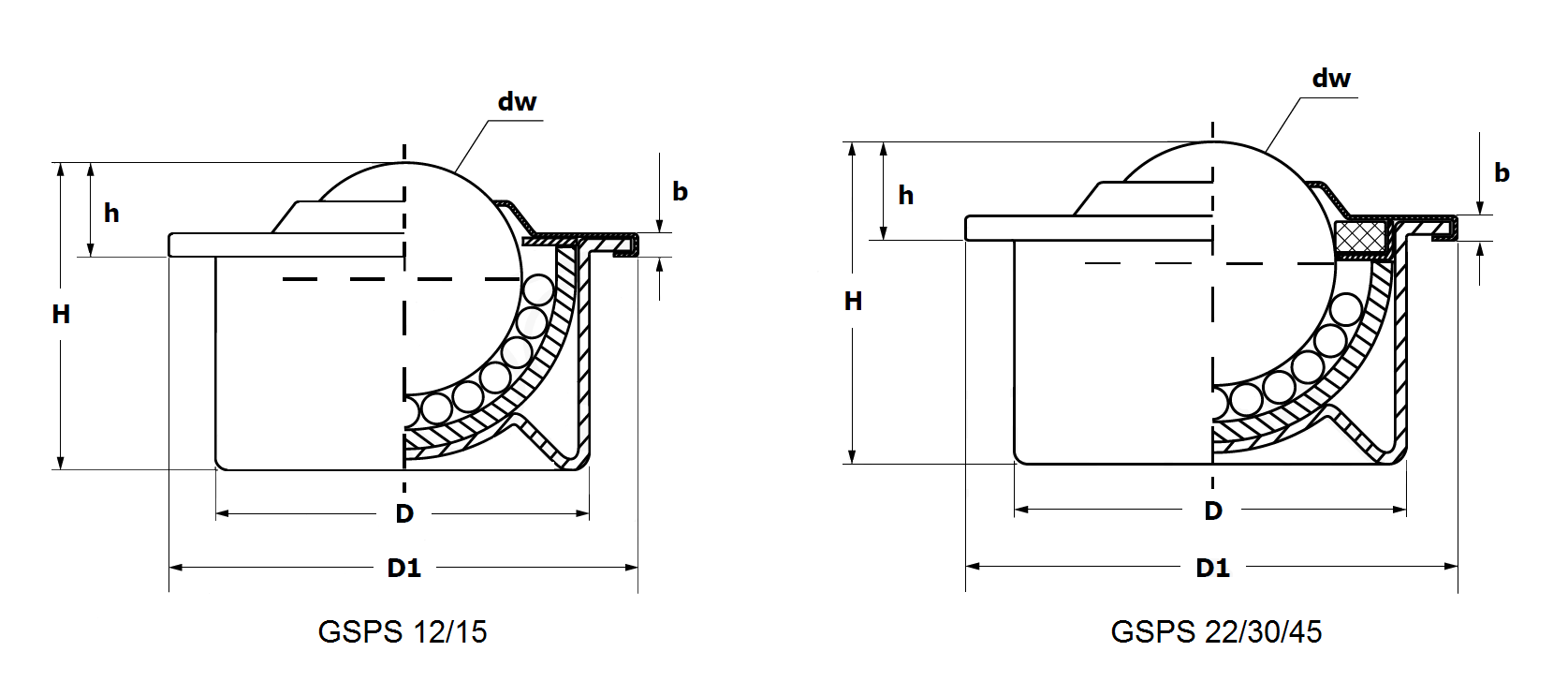

First slide
Model No Version dW D D1 h H b Loading Capacity(Kg) ⤒ Loading Capacity(Kg) ⤓ W(Kg) Download





GSPS 12 B		 Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.




12




22 ± 0,08




28




8 ± 0,2




17,2




3




15




15




0,030




GSPS 15 B same as above 15 24 ± 0,08 31 9,5 ± 0,2 21 3 50 35 0,037
GSPS 22 B same as above 22 36 ± 0,08 45 9 ± 0,2 29,5 3,5 120 80 0,130
GSPS 25 B same as above 25 38 ± 0,08 45 14 ± 0,3 30,5 3,5 120 80 0,130
GSPS 30 B same as above 30 45 ± 0,1 55 13 ± 0,3 36,8 4 250 170 0,265
GSPS 45 B same as above 45 62 ± 0,15 75 19 ± 0,4 53,5 6 420 300 0,655






GSPS 15 C		 Body made up of pressed zinc zinc plated metal sheet,inner ball race made up of hardened steel, ball made up of AISI 420C stainless steel.





15





24 ± 0,08





31





9,5 ± 0,2





21





3





35





35





0,037





GSPS 22 C same as above 22 36 ± 0,08 45 9,8 ± 0,2 29,5 3,5 90 60 0,130
GSPS 25 C same as above 25 38 ± 0,08 75 14 ± 0,3 30,5 3,5 90 60 0,130
GSPS 30 C same as above 30 45 ± 0,1 55 13,8 ± 0,3 36,8 4 140 100 0,265





GSPS 15 SS		 Body made up of pressed stainless steel sheet,inner ball race made up of hardened stainless steel, ball made up of AISI 420C stainless steel.




15




24 ± 0,08




31




9,5 ± 0,2




21




3




35




35




0,037




GSPS 22 SS same as above 22 36 ± 0,08 45 9,8 ± 0,2 29,5 3,5 90 60 0,130
GSPS 25 SS same as above 25 38 ± 0,08 75 14 ± 0,3 30,5 3,5 90 60 0,130
GSPS 30 SS same as above 30 45 ± 0,1 55 13,8 ± 0,3 36,8 4 140 100 0,265
